Electrical Rubber Mat

XVolt Insulating Mat: Product Details

Duratuf XVolt insulating mat is a dielectric rubber mat with a non-conductive surface. It offers protection from low, medium, and high voltage ranges. The XVolt insulating mat is placed near electrical equipment like switchboards, control panels, transformer units, LT-HT panels, etc. The XVolt mat is type-tested and certified. It can be used across all industries but is more popular in power generation and distribution plants, construction sites, mines, manufacturing units, and automobile facilities.

3 features that differentiate XVolt electrical mat from other brands:

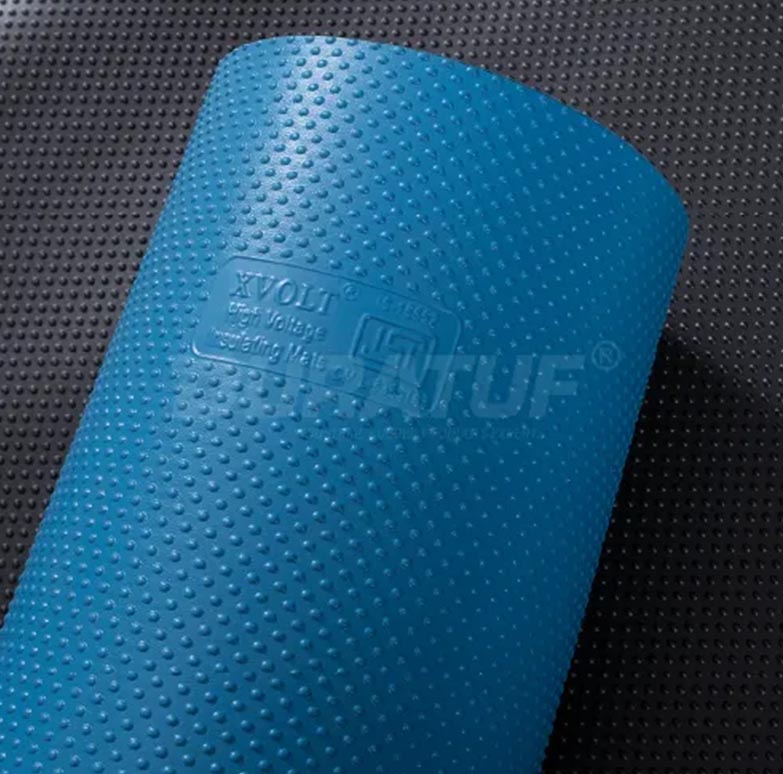

#1 Lesser overall accidents: Electrical hazards are not the only reason for workplace accidents; slips-trips and falls also cause injury. XVolt IS 15652 mats have dotted surfaces above with self-gripping texture below, keeping the mat in place.

#2 Durable great against humidity: The Indian climate is humid, and moisture degrades rubber. 5000+ Indian factories and workshops have XVolt insulating mats installed, where they are highly trusted!

#3 Needs minimal maintenance: The XVolt insulating mats are easy to install and clean; thus, they need minimal maintenance.

Technical Details of the XVolt Insulating Mat

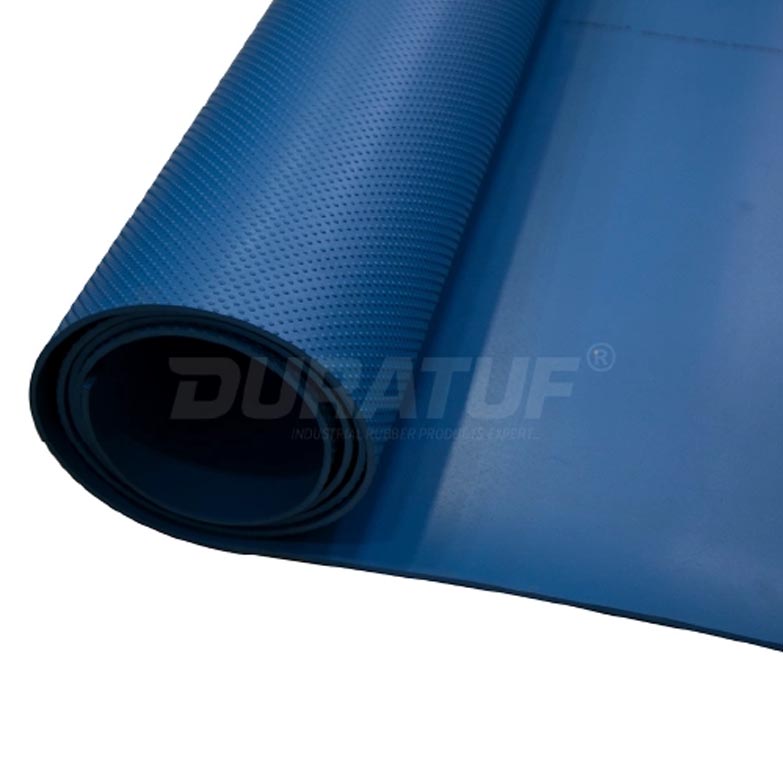

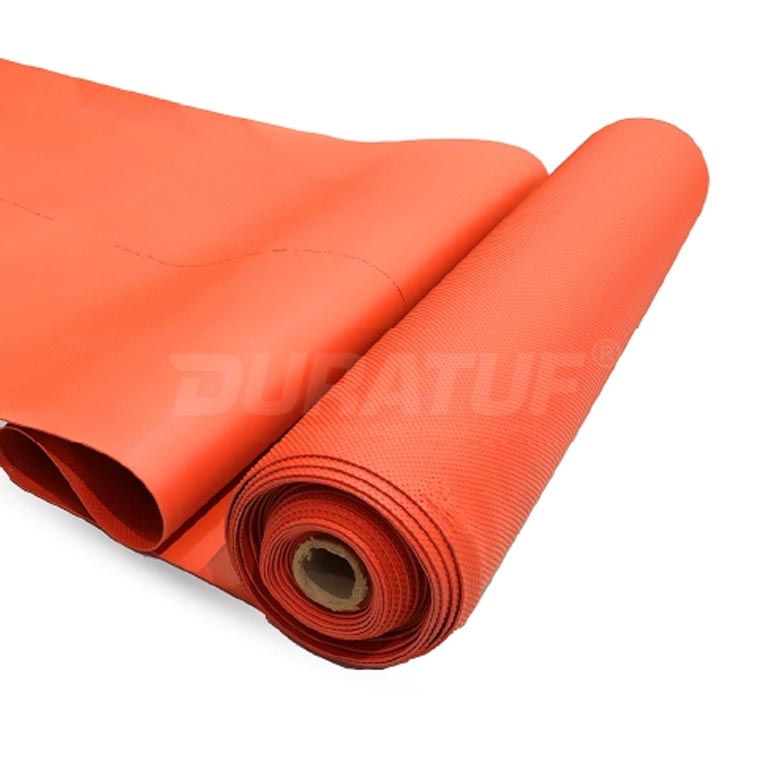

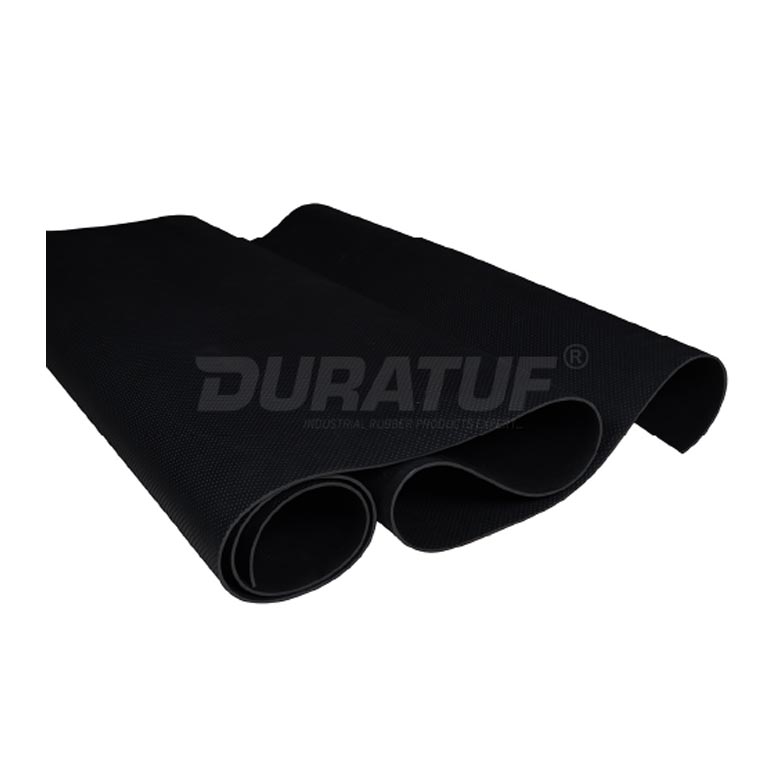

The XVolt electrical mats are available in black, blue, and red colors in three classes. The class variants are 3.3 kV electrical mat, 11 kV rubber mat, and 33 kV rubber mat. The 3.3 kV electrical mat is class A, it offers electrical protection up to an AC-proof voltage of 10 kV. The 11 kV electrical mat belongs to class B, it offers electrical protection up to AC proof voltage of 45 kV. The 33 kV electrical mat belongs to class C, it offers electrical protection up to AC proof voltage of 65 kV. The thicknesses of these mats are 2 mm, 2.5 mm, and 3 mm.

Maximum Voltage

Product CodeClassMax Use VoltageAC Proof VoltageDielectric VoltageStandard Thickness
IM-XV-CAA3.3 kV10.0 kV30.0 kV2.0 mm
IM-XV-CBB11.0 kV22.0 kV45.0 kV2.5 mm
IM-XV-CCC33.0 kV36.0 kV65.0 kV3.0 mm
